Isolators/Circulators...

Miniature  Drop-In Flange Mount  Isolators
4.0GHz - 24GHz


Features

Description

  • Less Weight
  • Magnetically shielded
  • Unibody Construction

These miniature isolators are used in commercial, military, and space applications. These isolators can be integrated in stripline as well as microstrip applications. Stainless steel unibody construction is rugged and reliable for high-reliability applications.

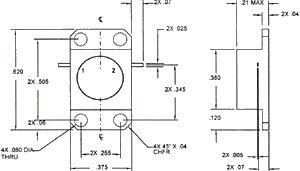

Outline L1 Outline K1

Frequency
(GHz)
Model # Bandwidth
(%)
Isolation
(dB Min)
Ins. Loss
(dB Max)
VSWR
(Max)
Load
(watts)
Temp C Outline #
4.0 - 6.0 2K6N* 5 20 .5 1.25 10 -40 to +80 K1
5.4 - 5.9 2K6NB Full 20 .4 1.25 10 -40 to +80 K1
5.9 - 6.4 2K6ND Full 20 .4 1.25 10 -40 to +80 K1
6.0 - 8.0 2K7N* 10 20 .5 1.25 10 -40 to +80 K1
7.0 - 7.7 2K7NC Full 20 .4 1.25 10 -40 to +80 K1
7.7 - 8.4 2K7ND Full 20 .4 1.25 10 -40 to +80 K1
8.0 - 12.0 2K7BB Full 20 .7 1.40 10 -40 to +80 K1
8.0 - 12.0 2L8N* 10 20 .5 1.25 5 -40 to +80 L1
9.2 - 10.2 2L8NB Full 20 .5 1.25 5 -40 to +80 L1
11.7 - 12.5 2L8ND Full 20 .5 1.25 5 -40 to +80 L1
12.0 - 18.0 2L9BE Full 18 .8 1.40 10 -40 to +80 K1
12.5 - 13.5 2L9NA Full 20 .5 1.25 5 -40 to +80 L1
14.0 - 14.5 2L9NB Full 20 .5 1.25 5 -40 to +80 L1
14.0 - 15.5 2L9NC Full 18 .7 1.30 5 -40 to +80 L1
17.5 - 20.0 2L9ND Full 18 .7 1.30 5 -40 to +80 L1
20.2 - 21.2 2L9NE Full 18 .7 1.30 5 -40 to +80 L1
18.0 - 22.0 2L9NF Full 18 .7 1.30 5 -40 to +80 L1
21.2 - 22.4 2L9NG Full 18 .7 1.30 5 -40 to +80 L1
22.4 - 23.6 2L9NH Full 18 .7 1.30 5 -40 to +80 L1
21.2 - 23.6 2L9NJ Full 16 .7 1.35 5 -40 to +80 L1

Correct frequency identification assigned by factory (A-Z). Specifications subject to change without notice.
